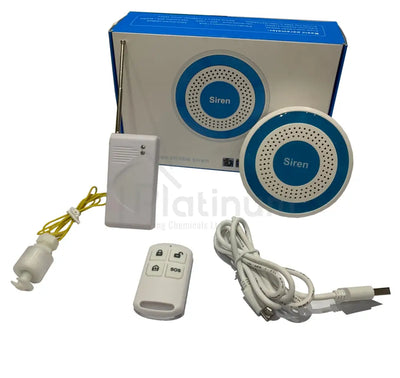

Platinum AquAlarm Wireless - 110db Wireless Sump Pump High Water Level Alarm

Installing the Platinum AquAlarm Wireless involves several key steps to ensure it functions effectively as a high-water alert system. Below are detailed instructions designed to guide you through the setup process, ensuring optimal performance and reliability.

Preparing for Installation

1. Location Planning: Before installing, decide on the placement of both the siren and the float switch. The float switch should be placed in an area where water levels need to be monitored, such as a sump pit or near potential flood areas. The siren should be installed in a location where it can be easily heard and seen.



2. Testing Wireless Connectivity: Before permanently fixing the devices, temporarily place the siren and the float switch in their intended locations. Test the system to ensure that the wireless signal between the float switch and the siren is strong without any interruptions. Adjust the placement as necessary to achieve optimal signal strength.

Installing the System

1. Mounting the Siren: Attach the siren to a wall using the supplied siren locking ring backplate. Ensure it is placed within a standard mains outlet’s reach for continuous power supply and optimum signal reception.



2. Installing the Float Switch Transmitter: The float switch transmitter can be fixed using the provided self-adhesive pad. Place it inside the sump chamber or another relevant area, ensuring it is secure and positioned effectively to monitor water levels. If necessary, extend the connecting wire between the float switch and the transmitter to optimise placement.



3. Power Connections: Connect the siren to a mains power supply using the included USB cable. Activate the internal backup battery by switching the siren to the ‘ON’ position to ensure operation during a power outage.

Coding and System Configuration

1. Inserting the Battery: Start by inserting the 23A - 12V battery into the wireless float switch. Open the rear cover of the float switch to install the battery.



2. Powering the Siren: Plug the siren into a USB socket to power up.



3. Entering Set Mode: Press the set button on the siren for approximately 1 second until it bleeps and the LED flashes once, then release the button immediately. The LED will then flash rapidly indicating it is in set mode.



4. Coding the Float Switch: Quickly activate the float switch; the siren should emit a long and a short alert tone confirming successful pairing.



5. Pairing the Key Fob: Within 5 seconds of pairing the float switch, press the SOS button on the key fob. The siren should again emit a long and a short alert tone to confirm the key fob is paired.



6. Exiting Set Mode: The system will automatically exit set mode 10 seconds after the last device is paired. Ensure all devices are paired within this window.

Operating the System

• Activating the Alarm: Press the padlock ‘LOCK’ button on the key fob to arm the system. The siren’s blue LED will flash every 15 seconds to indicate that it is active.



• Deactivating the Alarm: Press the padlock ‘UNLOCK’ button on the key fob to disarm the system.

Maintenance and Troubleshooting

• Regular Checks: Regularly test the alarm and battery to ensure the system is operational, especially before periods of expected bad weather or heavy rainfall.



• Battery Replacement: Check and replace the batteries in both the float switch and the key fob as needed to ensure they are always functioning properly.

By following these installation instructions, the Platinum AquAlarm Wireless will provide a reliable and effective early warning system to alert you of rising water levels, helping to prevent potential flooding and water damage in your property.

Q) What is the Platinum AquAlarm Wireless - 110db Wireless Sump Pump Level Water Alarm?

A) The Platinum AquAlarm Wireless is a sophisticated safety and monitoring device engineered to alert users to high water levels in sump pits, tanks, or other water collection areas. It integrates a 110 dB siren with a blue flashing LED, ensuring both visible and audible alerts. Powered via mains or USB, it includes a Li-ion battery backup for operation during power failures, making it reliable in critical situations.

Q) How does the Platinum AquAlarm Wireless function during a power outage?

A) Equipped with a built-in Li-ion internal battery, the Platinum AquAlarm Wireless continues to operate effectively during power outages. This backup power ensures that the device remains fully functional, providing continuous monitoring and alerting capabilities, which is crucial for preventing water damage during times when main power sources are unavailable.

Q) What are the installation requirements for the Platinum AquAlarm Wireless?

A) Installation of the Platinum AquAlarm Wireless involves several steps: positioning the siren within range of a mains outlet for optimal signal reception, mounting the float switch transmitter using the provided self-adhesive pad in areas requiring water level monitoring, and ensuring wireless connectivity between the siren and the float switch is strong without any interruptions.

Q) Can the wireless range of the device be extended?

A) The Platinum AquAlarm Wireless boasts a robust line-of-sight communication range of 100 metres between the float switch transmitter and the siren. For installations requiring greater distances or where obstacles obstruct the direct line of sight, the connecting wire between the float switch and transmitter can be extended to optimise placement and ensure effective wireless communication.

Q) How do I activate and deactivate the Platinum AquAlarm Wireless?

A) The system can be easily armed and disarmed using the provided keyfob remote. To activate the alarm, press the padlock ‘LOCK’ button on the keyfob; a blue LED light will flash every 15 seconds to indicate that the system is active. To deactivate, press the padlock ‘UNLOCK’ button, which will stop the flashing LED and silence the alarm.

Q) What is the purpose of the blue flashing LED on the Platinum AquAlarm Wireless?

A) The blue flashing LED on the Platinum AquAlarm Wireless serves as a visual alert mechanism that complements the 110 dB siren. This feature ensures that high water levels are immediately noticeable even in noisy environments or in situations where the audible alarm might not be heard. It is particularly useful in complex industrial settings or large residential areas.

Q) What should be done if the alarm sounds continuously or unexpectedly?

A) Continuous or unexpected sounding of the alarm may indicate that the float switch is either malfunctioning or misaligned, or there may be persistent high water levels that need addressing. First, check the float switch for correct placement and functionality. If the issue persists, inspect the area for any water leaks or flooding risks that may be triggering the alarm.

Q) How frequently should the battery in the float switch and keyfob be replaced?

A) To maintain optimal performance and reliability, it is recommended to replace the batteries in the float switch and keyfob at least once a year, or sooner if the device is used frequently. Regular testing and maintenance checks will help determine battery life and ensure the system remains operational when needed most.

Q) What are the typical applications of the Platinum AquAlarm Wireless?

A) The Platinum AquAlarm Wireless is versatile for various applications including residential sump pits, commercial water collection systems, industrial facilities, agricultural uses for monitoring irrigation and water storage, and construction sites. Its reliability and ease of use make it ideal for any setting where water level monitoring is crucial to prevent flooding and water damage.

Q) Is the Platinum AquAlarm Wireless suitable for outdoor installation?

A) While the Platinum AquAlarm Wireless is highly durable, it is designed primarily for indoor use or in covered areas to protect its electronic components from direct exposure to harsh weather conditions. If outdoor use is necessary, ensure it is placed within a protective casing or under sufficient cover to shield it from rain, snow, and extreme temperatures.

Q) How does the keyfob remote enhance the usability of the Platinum AquAlarm Wireless?

A) The keyfob remote enhances the usability of the Platinum AquAlarm Wireless by providing a simple and convenient way to arm and disarm the system. This accessibility makes it easy for users of all technical abilities to manage the system efficiently, adding an element of control and flexibility to the overall water management strategy.

Q) What maintenance is required for the Platinum AquAlarm Wireless?

A) Regular maintenance for the Platinum AquAlarm Wireless includes testing the system to ensure it is functioning correctly, checking and replacing batteries in the float switch and keyfob as needed, and ensuring that the float switch is free from debris and obstructions. Periodic reviews will help maintain the effectiveness and reliability of the alarm system.

Q) Can the siren’s volume be adjusted on the Platinum AquAlarm Wireless?

A) The siren’s volume on the Platinum AquAlarm Wireless is fixed to ensure that the alarm is sufficiently loud to alert users in case of high water levels. The 110 dB siren is designed to be audible over large distances and in environments with background noise, providing a reliable alert system that cannot be missed.

Q) What are the benefits of having a dual power supply system in the Platinum AquAlarm Wireless?

A) The dual power supply system in the Platinum AquAlarm Wireless, which includes both mains power and a USB connection along with an internal Li-ion battery backup, provides exceptional reliability and flexibility in power sourcing. This ensures the alarm remains operational during power outages, maintaining continuous monitoring and protection against water ingress.

Q) How can I ensure the best performance from my Platinum AquAlarm Wireless system?

A) To ensure the best performance from the Platinum AquAlarm Wireless, it is crucial to follow the installation guidelines carefully, position the siren and float switch in optimal locations, regularly test the system, and maintain all components in good working order. Additionally, familiarising yourself with all operational features and adjustments will help maximise the effectiveness of the alarm in preventing water damage.
