Newton CDM 503 Waterproof Membrane Kit

Health & Safety And Installer Competency

Newton CDM 503 forms part of a specialist structural waterproofing system and should be designed and installed by competent people experienced in cavity drain membrane work. Follow the current instructions for the membrane, every included or additional ancillary, the project waterproofing design and applicable health-and-safety requirements.

Before work begins, confirm the retaining structure, expected water conditions, internal environmental grade, drainage route, gravity outlet or sump-and-pump position, pump duty, discharge arrangement, ventilation strategy, final finishes and future maintenance access. Survey structural defects, contamination, biological growth and hidden services so necessary repair or specialist treatment is completed before concealment.

Wear suitable gloves, eye protection and safety footwear. Use appropriate dust extraction and respiratory protection during drilling and substrate preparation. Provide correctly erected access equipment for high walls, arches and vaults, and keep the area well lit and clear of loose rolls, open channels, trailing cables and trip hazards.

Scan for electrical cables, gas pipes, water services and structural hazards before drilling. Control knives, SDS drills, hammers, mallets and hot-air equipment carefully. Controlled warmth may assist membrane drying and butyl adhesion, but CDM 503 and the supplied CDM OverTape must never be overheated or exposed to flame.

System Design Principles

CDM 503 does not resist hydrostatic pressure as a standalone sheet. Its studded membrane, sealed wall fixings, taped butt joints and drainage components create a depressurised cavity that accepts and controls water entering through the structure. The quantity of ingress must remain within the designed capacity of the cavity, BaseDrain, outlet, sump, pumps and discharge pipework.

The waterproofing designer should assess groundwater, retaining conditions, construction type, permeability, wall and slab junctions, movement joints, cracks, service penetrations, slab levels, intended room use and the consequence of failure. Consider combined waterproofing protection where the site risk, construction or required resilience makes one form of protection insufficient.

Every part of the membrane cavity must connect continuously to drainage. Wall CDM 503, floor CDM 503, BaseDrain, FloorDrain, outlets, sump chambers and discharge routes should form one coordinated path without backfalls, trapped zones, sealed pockets or details that direct water onto vulnerable joints. The shallow 3mm cavity makes preparation and cleanliness especially important.

Where pumping is necessary, assess duty and standby pumps, electrical supplies, high-water alarms, battery back-up, telemetry and safe discharge according to risk. The receiving drain must accept the design flow without surcharging, freezing or returning water towards the protected structure.

For above-ground damp-proofing, diagnose and address avoidable moisture sources before CDM 503 is installed. Coordinate any required Platinum remedial DPC treatment, masonry preparation, dry lining, ventilation and thermal design so the membrane does not conceal active defects or transfer moisture into adjacent untreated construction.

Suitable Substrates And Finishes

CDM 503 must be installed against a background stable enough to receive the selected fixing and support the completed construction. Resolve active structural movement, collapsing masonry, hazardous contamination and defects requiring engineered repair before the membrane is installed.

Preparation Of Walls, Floors And Soffits

Complete a specialist survey and remedy major causes of damp or water ingress that can reasonably be corrected. Repair structural defects, leaking services, external drainage faults and defective rainwater goods, and specify any separate rising-damp or timber treatment only after the moisture mechanism has been diagnosed.

Remove unsound plaster, render and screed. Stiff-brush or vacuum the background to remove loose material, laitance, salts, dust, mould, adhesive and organic debris. Sound existing render may remain where the survey and fixing design accept it, but friable or poorly bonded layers must not retain plugs or support finishes.

Where dry rot has affected suitable masonry, apply Lignum Pro M50 Masonry Biocide in accordance with its label and instructions as part of the complete remedial specification. Wet rot, timber decay, insect attack and other forms of biological contamination require the appropriate specialist assessment and treatment; covering affected material with CDM 503 is not acceptable.

Make good severe depressions, open joints and unstable areas with Platinum Fillet Seal Mortar or another compatible repair or levelling material where specified. Where a board finish will be laid directly above CDM 503, the supporting concrete base must not deviate by more than 5mm beneath a 2m straightedge. Allow repair and levelling products to reach their required condition before covering.

Apply Wykamol Anti-Lime Sealer to suitable concrete where free lime or dust could migrate into the cavity and drainage system. Keep every surface and BaseDrain route free from mortar, drilling debris and sharp projections because obstruction or puncture can compromise the shallow 3mm cavity.

For a Type C floor drainage system, establish the datum at slab level beside the drainage channel where it meets the sump chamber. Deviation from this datum must not exceed -5mm between that point and the furthest extent of the waterproofing system. A positive deviation of up to +15mm is acceptable only at the furthest point and must not create an intermediate high or low area that strands water.

Check the slab using a rotating laser and controlled flood test. Water must travel towards the designed drainage channel and sump without persistent ponding. Identify low points, reverse falls and high spots, correct them by suitable planing, grinding or a compatible levelling compound, then repeat the test before CDM 503 or insulation conceals the floor.

Anti-lime sealer being applied to prepared concrete before installation of Newton CDM 503 Waterproof Membrane.

Tools And Ancillary Products Required

The kit contains two 10mm x 160mm SDS Plus masonry drill bits for Newton CDM MultiPlug holes. Other typical equipment includes a tape measure, 2m straightedge, spirit or rotating laser level, marker, sharp utility knife, scissors or shears, suitable SDS hammer drill, club hammer or mallet, hand roller, clean cloths, stiff brush, vacuum or dust extraction, and controlled hot-air equipment where gentle drying or improved butyl tack is necessary. Vaults and high walls require suitable access equipment, and Newton CDM NuSeal Plugs require a suitable 11mm SDS bit.

Set out all CDM 503 rolls, CDM MultiPlugs, CDM OverTape, additional Newton CDM Rope, compatible detailing tape, BaseDrain components, preparation products and protection materials before starting. Confirm that every calculated quantity matches the drawings and expected waste. Do not substitute generic tapes, mastics or unverified fittings for a specified waterproofing detail.

Keep tools clean and serviceable. Dull blades can tear CDM 503, worn drill bits can oversize fixing holes, and contaminated rollers or cloths can impair tape adhesion. Apply firm, even pressure to every butyl seal. Use heat only to assist drying and tack; excessive temperature can distort studs or damage the membrane and tape.

Drainage Requirements

Every below-ground CDM 503 installation must include a dependable method of disposing of water collecting behind or beneath the membrane. Floors need a suitable outlet and effective route towards it, or a Newton CDM BaseDrain perimeter system connected to an approved gravity discharge or correctly sized sump-and-pump arrangement.

Newton CDM BaseDrain is normally positioned at the wall-to-floor junction, while Newton CDM FloorDrain can provide cross-floor routes, threshold details or connections to a central sump. The layout must receive water from every membrane cavity and vulnerable structural junction without requiring water to cross unplanned obstructions or sealed zones.

Provide accessible inspection and jetting points at suitable locations, including changes of direction and longer channel runs. Access covers must remain reachable after screed, flooring, dry lining and joinery are completed. Record each location before concealment and include it in the owner’s waterproofing and maintenance information.

Where pumps are required, calculate inflow, duty point, static head, friction loss, discharge distance and chamber volume. Provide redundancy, alarms, power-loss resilience and telemetry where the risk assessment requires them. The final discharge must be lawful, dependable and arranged so water cannot return towards the building.

Newton CDM BaseDrain positioned at the wall-to-floor junction to collect water from behind the Newton CDM 503 Waterproof Membrane, with Newton CDM OverTape securing the channel to the Newton Condensation Strip and Newton CDM Fibran XPS 500-C Insulation beneath (via Newton CDM 503 Waterproof Membrane as a floor membrane).

Newton CDM BaseDrain And FloorDrain Preparation And Installation

Form the BaseDrain route at the wall-to-floor junction in accordance with the current Newton channel instructions and project drawings. The supporting bed must be stable and level, and the channel must not be distorted or obstructed by mortar, debris or uneven infill. Position the upstand against the wall-membrane detail so collected water can enter the channel freely.

Join channel lengths with the correct Newton components and secure the specified connections using Newton BaseDrain Jointing Tape. Use 90° Swept Corners at direction changes, T-Pieces where perimeter and cross-floor runs meet, and FloorDrain where an upstand-free route is required. Connect the channel through the specified Newton Drainage Adaptor or Sump Connector to approved pipework leading towards the sump, gully or gravity discharge.

Install Newton CDM BaseDrain Flexible Jetting Eyes wherever required by the maintenance design, ensuring their covers remain reachable through the finished construction. Keep channel interiors clean and check that each fitting maintains an uninterrupted flow path. Do not use adhesive, foam or improvised fittings that create internal lips or can detach later.

Before concealment, flush BaseDrain with clean water and verify free flow to the outlet or sump. Inspect every joint, corner, access point and discharge connection, then photograph and record the installed route. Where pumps are fitted, test normal operation, alarm function, back-up provision and discharge under controlled conditions.

Wall Installation

CDM 503 may be installed vertically or horizontally. Measure the wall and cut the membrane on a clean, protected surface using a sharp knife, scissors or shears. Position the sheet with the studs towards the wall and the flat face towards the room, keeping it level and tight into corners without stretching, bridging or distorting the stud profile.

Begin near the top and install enough initial fixings to support the sheet before completing the selected pattern. Fit a supplied 10mm x 160mm SDS Plus bit in a suitable drill, then drill centrally through a CDM 503 stud into sound masonry to a depth greater than the Newton CDM MultiPlug. Control drilling dust and avoid holes between studs.

Insert a supplied Newton CDM MultiPlug and drive it fully home so its soft rubber sealing grommet compresses evenly against the membrane. Reject loose, damaged or poorly seated fixings. Where an approved overhead detail uses a MultiPlug with the grommet replaced by CDM Rope, form a continuous butyl ring and compress it into a watertight gasket.

Continue CDM 503 into ceiling voids and down to the floor or drainage detail wherever possible. Return the sheet sufficiently onto adjacent walls to isolate the final lining, and plan openings before fixing. Keep electrical points, cables, pipework and switches on the dry side wherever practicable.

Wall Fixing Centres And Internal Finishes

Fixing density depends on the substrate and selected internal finish. Newton guidance gives centres of 600mm vertically and 400mm horizontally for preservative-treated timber battens, 800mm vertically and 600mm horizontally for fixed metal track, and 300mm around by 600mm along barrel vaults. Independent frames require sufficient fixings to hold CDM 503 reasonably tight, particularly around corners, openings and junctions.

Use preservative-treated battens at least 25mm x 38mm, with 25mm x 50mm often providing better support at board edges. Fix suitable 5mm (No. 10) self-tapping screws into the central cores of CDM MultiPlugs so no second hole is formed through CDM 503. Control screw length and tightening so the plug remains secure and the membrane is not punctured.

Independent floor-supported frames do not require a standard membrane-fixing grid, but enough plugs must hold CDM 503 reasonably tight at corners, openings and junctions. Compatible proprietary metal systems and correctly restrained internal masonry linings may also be used where their loads and ties are designed without uncontrolled penetrations.

Fix plasterboard or approved lining boards so screws and nails remain within the batten depth. Keep services in front of CDM 503 and support heavy fittings from predetermined battens or designed structural supports. Any exceptional fixing through the membrane requires a specific load-bearing and waterproofing detail.

Newton MultiPlugs fixing Newton 503 to the wall, with fixing centres set to suit the internal finish, typically 600mm vertically and 400mm horizontally for timber battens.

Jointing And Sealing

Newton CDM 503 is non-flanged. Position adjoining sheets edge to edge as a close, accurately aligned butt joint. Keep cut edges straight and free from open gaps, distorted studs or sheet overlap. Clean and dry the flat membrane face on both sides of the joint before applying tape.

Centre the supplied 150mm Newton CDM OverTape over the joint so approximately equal width bonds to each sheet. Apply it progressively using firm palm or roller pressure, removing wrinkles, bridging and trapped air while maintaining full contact across both CDM 503 faces.

In cold or damp conditions, gently dry the HDPE with controlled hot air and warm the butyl only enough to improve tack. Never seal over visible water, dust, mortar, grease or loose material. Use continuous tape lengths wherever practicable and form unavoidable tape end-joints in accordance with the current CDM OverTape instructions.

Straight joints may run vertically or horizontally, but unnecessary joints should be avoided. The supplied CDM OverTape length may not cover every joint and detail, so complete a take-off and obtain additional rolls where necessary. Inspect each seal before concealment and repair damage using compatible CDM 503 and the specified Newton butyl products.

Wall-To-Floor Junction And BaseDrain Integration

The wall-to-floor junction must transfer water from behind CDM 503 into BaseDrain without leaving an unprotected gap or sealed pocket. Position the wall membrane and channel upstand to the approved detail, then clean and dry the receiving surfaces before applying Newton CDM OverTape.

Where CDM 503 continues across the floor, turn the floor membrane up at the perimeter and seal it to the wall membrane or BaseDrain upstand as specified. Form corners neatly and avoid bunching the sheet, blocking channel openings or pulling tape across unsupported voids.

Where a deep floor construction could allow condensation to run down the room-facing side of the wall membrane above the BaseDrain upstand, Newton CDM Condensation Strip may be incorporated to collect it. The detail must not obstruct water entering BaseDrain from the structural side.

Before floor finishes are installed, introduce controlled clean water behind the wall membrane and confirm that it enters BaseDrain and reaches the gravity outlet or sump. Rectify slow flow, leakage, trapped sections and incomplete seals before concealment.

Floor Installation

Provide the designed outlet, fall and BaseDrain arrangement before laying CDM 503. The concrete base must be stable, clean and free from sharp projections. Where a board finish will lie directly over the membrane, prepare the floor so it does not deviate by more than 5mm beneath a 2m straightedge.

Roll CDM 503 across the floor with the studs facing down. Cut sheets neatly around perimeters, columns, channels and unavoidable services without stretching or crushing the studs. The floor membrane remains loose laid and must never be fixed through to the slab.

Bring adjoining floor sheets together as close butt joints without overlapping CDM 503. Centre 150mm Newton CDM OverTape over each joint, press it firmly across its full width and maintain accurate edge alignment while sealing. The finished membrane must remain continuous and free from open edges, wrinkles or trapped debris.

Protect CDM 503 promptly using a compatible load-spreading floor construction. Options may include loose-laid tongue-and-groove chipboard, a supported timber floor, insulation with screed or chipboard above, an underfloor-heating tray with screed above, or project-specified screed or concrete. Newton Fibran XPS 500-C may be used within an approved, load-checked insulated drainage build-up. Provide the required perimeter expansion gap, verify imposed loads and prevent subsequent fixings from puncturing the membrane.

CDM 503 may be laid over suitable new concrete once it is safely walkable, allowing the protected floor construction to proceed without waiting for the concrete to reach decorative-floor moisture limits. Every screed, adhesive, board and final finish must still comply with its own substrate-moisture, curing and installation requirements.

Vaulted Soffit Installation

CDM 503 may be installed to suitable arched or vaulted ceilings where the structure provides a dependable continuous fall to drainage. Survey the curve, end walls, joint positions and outlet route before cutting so the membrane follows the background without excessive tension, open folds or sagging pockets.

Position the studs towards the soffit and secure the membrane using additional Newton CDM NuSeal Plugs with CDM Rope, or approved MultiPlugs whose rubber grommets have been replaced by CDM Rope. Form a continuous butyl ring around each fixing and drive it firmly enough to create a watertight gasket. Use a suitable 11mm bit for NuSeal Plugs.

Where separate sections meet across the vault, form a close butt joint and seal it centrally with 150mm Newton CDM OverTape. Plan shaped cuts carefully, minimise joint numbers and install sufficient fixings to prevent sagging or pockets capable of retaining water and debris.

At each end wall, turn the vault membrane down by at least 200mm. Mitre only as necessary to follow the curve, seal each cut with compatible tape or rope, and install the wall membrane in front of the turned-down soffit sheet so water continues towards the designed collection route.

Flat Soffit Restrictions

Flat concrete soffits are specialist inverted cavity-drain applications because inadequate fall, membrane sagging or low pockets can retain water, contaminate the cavity and load the fixings. Do not apply CDM 503 to a flat soffit unless the soffit is at least 400mm narrower than the 2m membrane width, and then only use very experienced contractors working to a project-specific design with a dependable drainage fall.

Where the width restriction and required drainage fall cannot both be satisfied, the waterproofing designer must specify another solution. Do not attempt to create drainage by allowing CDM 503 to hang loosely, because sagging forms uncontrolled pockets and places additional stress on fixings and joints.

Check the complete width and length of every arched, vaulted or sloping soffit. Local depressions, beams, ribs, abutments and changes of direction can interrupt the route even where the general geometry appears suitable. Resolve each obstruction and connect every cavity to safe drainage before installing finishes.

Door Reveals, Corners And Junction Details

Run CDM 503 continuously around internal and external corners where it can be folded neatly without excessive distortion. Form a square crease and fix the membrane tightly into the angle so the lining remains straight and the cavity does not bridge across the corner.

If CDM 503 becomes misshapen around a return, stop at the corner and begin a new sheet rather than forcing the fold. Bring the edges together as a close butt joint and seal them with 150mm CDM OverTape. Use Newton CDM Rope where a three-dimensional detail cannot make continuous contact with flat tape.

Where possible, install CDM 503 across window openings and trim the aperture afterwards so the main sheet remains continuous. Seal exposed perimeters using the specified combination of Newton CDM Joint Tape, Newton CDM Rope and CDM OverTape. At doors or fixed obstacles, bring CDM 503 accurately to the perimeter and seal the junction with equal care.

Coordinate thresholds with Newton CDM FloorDrain, BaseDrain or another compatible continuity detail before membrane fixing begins. Avoid isolated cavities beside frames and never leave an open reveal or return through which water can bypass CDM 503 and reach the dry lining.

Protrusions Through Newton CDM 503

Avoid membrane penetrations wherever practical and route pipes, cables, conduits, sockets and controls on the dry side. Where a penetration cannot be avoided, establish its location before cutting and keep the opening small, regular and suitable for the selected sealing detail.

For floor services, trim CDM 503 closely around the pipe or conduit and fill the remaining gap completely with Newton CDM Rope. Where necessary, add a compatible CDM 503 patch, seal it to the service with rope and seal its outer edge using Newton CDM Joint Tape or CDM OverTape.

Use suitable proprietary collars or sleeves for larger, grouped, moving, hot or irregular services where a rope-and-patch arrangement cannot provide durable continuity. Confirm compatibility with the service material, operating temperature, expected movement and future replacement method.

Exceptional structural fixings through a lined wall require a predetermined load-bearing and waterproofing detail. Support heavy objects from designed battens or structural anchors wherever possible. Pack and seal every unavoidable hole through CDM 503 using compatible flexible butyl products before it is concealed.

Protection Of Newton CDM 503 After Installation

Protect CDM 503 from sharp tools, dropped fixings, masonry fragments, ladders, wheelbarrows and concentrated foot traffic as soon as each area is complete. A concealed tear, displaced tape edge or crushed drainage path can compromise the finished system even where most of the visible membrane remains intact.

Keep prolonged ultraviolet exposure, high temperatures, ignition sources, open flame and incompatible chemicals away from stored or installed CDM 503. Prevent following trades from dropping mortar, screed, plaster or drilling debris into the membrane cavity, BaseDrain channel, sump chamber or inspection ports.

Coordinate subsequent work through one responsible person. Electricians, plumbers, joiners, dry liners and floor installers must understand that they cannot drill, nail or screw through CDM 503 without an approved sealed detail. Mark restricted zones and provide predetermined battens, supports and service routes before finishes are closed.

Where temporary protection board is used, ensure it does not crush the studs or obstruct drainage. Remove it carefully, inspect the entire membrane and clean BaseDrain immediately before installing the permanent wall or floor protection.

Ventilation And Humidity Control

CDM 503 has high resistance to vapour diffusion. When positioned on the cold side of insulation, it can increase interstitial-condensation risk unless the complete wall or floor construction and indoor environment are designed correctly. Complete an appropriate BS 5250:2021 assessment and provide a warm-side vapour-control layer where the design requires one.

Habitable basements and Grade 3 spaces normally require planned mechanical ventilation, background heating or another competent environmental-control strategy. Air-change rates, extract locations, make-up air, noise, energy use and controls should suit the occupancy and expected internal moisture generation.

Do not open the membrane cavity directly to the room as an improvised condensation measure. Uncontrolled openings may permit odours, vermin, moisture or water to bypass the intended waterproofing and drainage arrangement.

Monitor relative humidity after completion and address persistent internal sources including wet construction materials, clothes drying, unvented appliances or inadequate extraction. Type C waterproofing manages water from the retaining structure; it does not replace normal control of indoor humidity and air quality.

Inspection Before Finishes

Inspect the complete CDM 503 installation before dry lining, flooring, screed or concrete conceals it. Confirm that the membrane is correctly orientated, tight to walls and vaults, free from crushed studs, and protected from tears, open edges, unsupported joints or unsealed fixing points.

Check every butt joint, corner, door and window detail, service penetration, wall-to-floor transition and BaseDrain connection. Confirm that 150mm CDM OverTape is centred across each sheet joint, fully bonded and firmly rolled. Replace any tape contaminated by dust, water, oil or loose material instead of attempting to reuse it.

Vacuum cavity edges and drainage channels. Flush BaseDrain and FloorDrain with clean water and verify unrestricted flow to the gravity outlet or sump. Operate pumps, high-water alarms and any back-up system, and ensure discharged water cannot return towards the structure.

Photograph the membrane, channels, outlets, sump, pipework and concealed details. Record dimensions from permanent reference points and complete the installation inspection documentation. Do not approve concealment until every defect is repaired and the tested system performs as intended.

Repairs To Newton CDM 503

Repair all damage before concealment. Clean and dry the affected CDM 503, trim ragged material where necessary and confirm whether the studs and drainage cavity remain usable. A small clean puncture may be sealed using the appropriate specified Newton tape, while a larger tear requires a compatible patch extending well beyond sound membrane on every side.

Use Newton CDM Rope around irregular holes, plug penetrations and three-dimensional details, then secure the repair with Newton CDM Joint Tape or CDM OverTape as appropriate. Apply firm pressure across the complete seal and use controlled warmth only where necessary to dry the surface or improve butyl tack.

Where damage has crushed a significant studded area, affected a critical joint or occurred beside BaseDrain, a penetration or wall-to-floor transition, replace the membrane section or obtain a project-specific repair detail. A flat patch that seals the face while obstructing the drainage cavity is unacceptable.

Repeat the relevant inspection and controlled water test after repair. Photograph the completed detail and include its location and repair method in the waterproofing record for future owners and contractors.

Maintenance And Future Alterations

The protected CDM 503 membrane does not require routine surface maintenance under normal service conditions, but the drainage system supporting Type C performance does. BaseDrain, FloorDrain, jetting eyes, outlets, sump chambers, pumps, alarms, back-up power and discharge pipework must remain accessible and receive servicing at the intervals set by the system designer and equipment manufacturers.

Flush channels through the designated access points and remove lime, silt or debris before it restricts flow. Test pumps and float switches, clean and descale sump chambers, inspect pump seals, impellers, discharge pipes, electrical connections and fuses, operate alarms and verify back-up equipment under controlled conditions. Newton requires these pump and drainage checks to be completed at least annually by a competent person, alongside any additional requirements from the equipment manufacturers.

Future shelving, cupboards, skirtings, flooring, services and wall-mounted equipment must not be fixed through CDM 503 casually. Use recorded battens and designed supports or obtain a waterproofing detail for each new penetration. A small unsealed hole can allow water to bypass the membrane.

Provide the owner with drawings, photographs, test records, component information, access-point locations, pump manuals and maintenance contacts. Any contractor altering the space should review these records before drilling, lifting floors or opening linings.

Key Limitations

• The kit supplies selected membrane installation products only; it does not constitute a complete Type C waterproofing, drainage, discharge, protection or finishing system.



• CDM 503 does not resist hydrostatic pressure as a standalone barrier. It requires continuous drainage connected to a dependable gravity outlet or correctly designed sump-and-pump arrangement.



• The 40m² figure is the membrane roll’s nominal gross area, not finished installed coverage. Allow for trimming, junctions, details, repairs and reasonable waste.



• The included 100 CDM MultiPlugs may not satisfy the actual fixing calculation. Order additional plugs wherever the substrate, finish, fixing centres or wall geometry requires them.



• The supplied 20m CDM OverTape roll may not cover every butt joint, transition, corner and repair. Calculate the complete measured tape requirement separately.



• The shallow 3mm cavity must remain clean and unobstructed, making control of drilling dust, mortar, free lime, silt and crushed studs particularly important.



• Where Grade 3 protection is required and retained ground exceeds 600mm, relevant NHBC work requires CDM 503 to be combined with Type A or Type B protection.



• CDM 503 has not been BBA assessed for chemically contaminated brownfield sites; hazardous or unknown contamination requires specialist investigation and project-specific materials assessment.



• CDM 503 is non-meshed and must not receive direct plaster or render. Use a compatible protected lining or specify a suitable meshed membrane where a wet finish is required.



• A flat soffit must be at least 400mm narrower than the 2m membrane width and provide dependable drainage without ponding; only very experienced contractors should undertake this specialist work.



• Floor CDM 503 must never be punctured by ordinary fixings. Board, insulation, screed and Newton Fibran XPS 500-C constructions require suitable support, drainage and load checking.



• High vapour resistance can increase condensation risk when CDM 503 lies on the cold side of insulation; ventilation, heating and BS 5250 assessment remain necessary.



• Every CDM 503 sheet-to-sheet joint must be a close butt joint sealed centrally with 150mm Newton CDM OverTape; adjoining sheets must not be lapped or overlapped.



• The supplied grommet-sealed MultiPlugs are intended primarily for suitable wall applications. Curved overhead details require an approved MultiPlug or NuSeal Plug detail sealed with Newton CDM Rope.



• Keep all butyl surfaces clean and dry. CDM OverTape and Newton CDM Rope will not seal reliably over dust, grease, standing water, condensation or loose material.



• Protect CDM 503 from fire, impact, prolonged ultraviolet exposure, high temperatures and uncontrolled penetrations throughout installation and service.



• Pumps, alarms, battery back-up and telemetry reduce risk but do not eliminate it. Their capacity, power provision, discharge and maintenance must match the consequences of failure.



• Obtain specialist design for habitable basements, high water-risk sites, complex structures, combined waterproofing, pumped systems, structural movement or warranty-controlled projects.

Storage And Shelf Life

Store CDM 503 rolls upright in their original protective wrapping, under dry cover at temperatures between 5°C and 25°C. Protect them from freezing, sharp objects, direct sunlight, high temperatures, ignition sources and open flame. Do not stack or handle rolls in a way that crushes the 3mm studs, distorts edges or punctures the sheet.

Under normal service conditions, BBA Agrément Certificate 22/6357 states that Newton CDM 503 can provide an effective barrier to salts, liquid water and water vapour for the life of the structure in which it is incorporated. This membrane-specific statement does not establish a combined service life for the complete kit.

Keep Newton CDM OverTape in its original packaging under clean, dry conditions and protect the butyl face from dust, moisture, heat and deformation. Keep CDM MultiPlug sealing washers clean, flat and undamaged. Store drill bits dry and inspect their cutting heads and SDS shanks before use. Each included or additional component remains subject to its own storage, shelf-life and service information.

Other Technical Information

Newton CDM 503, product code M5, is a non-meshed HDPE membrane with a published unit weight of 0.5kg/m², 0.6mm sheet thickness and 3mm square-stud profile. The kit contains one 2m x 20m roll with nominal gross coverage of 40m². Actual installed coverage must allow for project geometry, detailing and reasonable waste.

Published membrane performance includes watertightness at 60kPa for 24 hours to EN 1928, 416N machine-direction and 488N cross-direction tensile strength, static-loading resistance above 20kg and declared compressive strength of 250kN. The stated working temperature is -50°C to +80°C and the softening temperature is 126°C.

CDM 503 is declared as a Type V sheet to BS EN 13967:2012+A1:2017, with Class E reaction to fire to EN 13501-1:2007+A1:2009. These values apply to the membrane product and do not establish the performance of the CDM OverTape, plugs, drill bits or completed waterproofing construction.

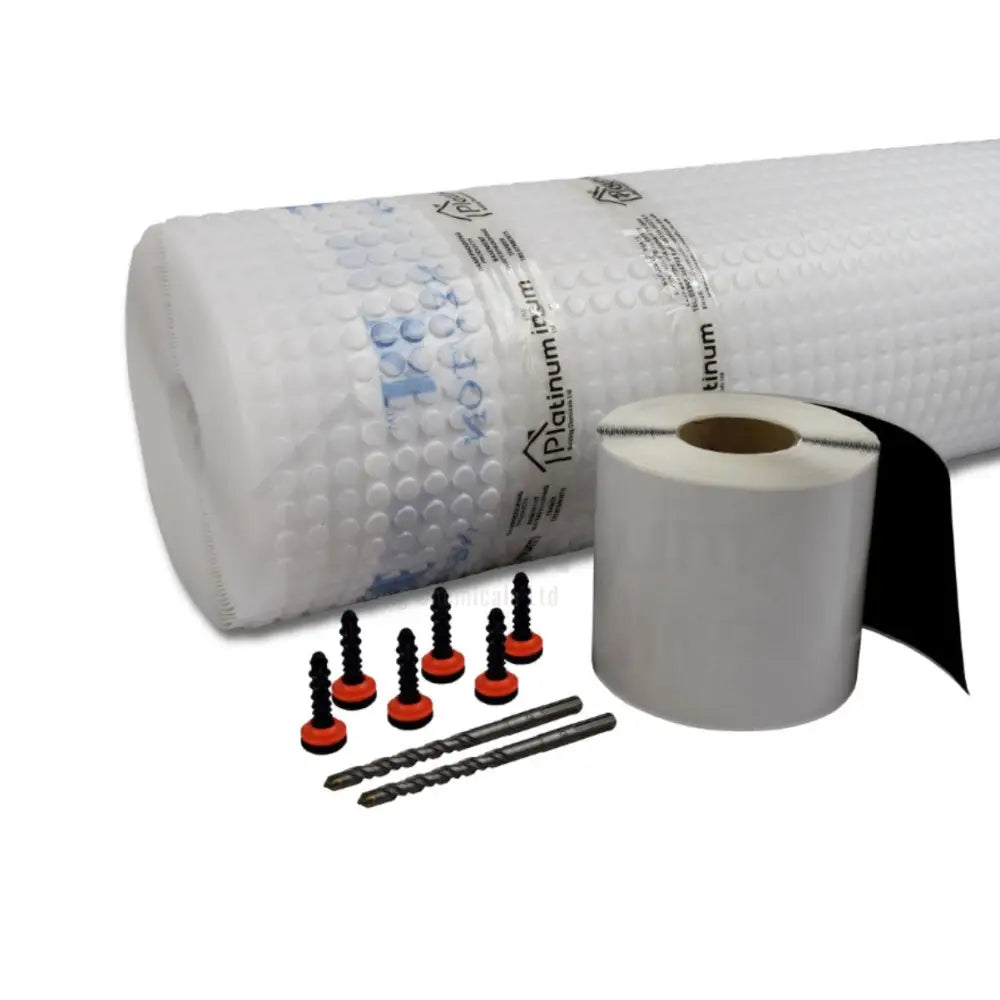

The kit supplies 100 sealed Newton CDM MultiPlugs, one 150mm x 20m CDM OverTape roll and two 10mm x 160mm SDS Plus masonry drill bits. These are fixed supply quantities; calculate and order additional materials wherever the project requires them.

The membrane can contribute to a Type C system designed under BS 8102:2022, but successful performance depends on the complete arrangement. Product data and the presence of included fixing products do not replace a site-specific drainage design, competent installation, inspection, commissioning and continuing maintenance.

Q) What is the Newton CDM 503 Waterproof Membrane Kit?

A) The Newton CDM 503 Waterproof Membrane Kit is a collection of principal products for installing a low-profile Type C cavity drain membrane system. It contains Newton CDM 503, a non-meshed HDPE membrane with 3mm square studs that create a controlled cavity between the structure and the protected internal finish. Water entering through suitable earth-retained walls, floors, tunnels or vaulted soffits can move through this cavity towards a designed drainage and discharge point. The kit also includes sealed wall fixings, membrane-jointing tape and masonry drill bits. Its compact profile is particularly useful where headroom, floor depth or internal space is restricted, but project-specific drainage and finishing products must be selected separately.

Q) What is included in the Newton CDM 503 Waterproof Membrane Kit?

A) The kit contains one 2m-wide x 20m-long roll of Newton CDM 503, providing a nominal gross membrane area of 40m². It also includes 100 sealed Newton CDM MultiPlugs, one 150mm-wide x 20m-long roll of Newton CDM OverTape and two 10mm x 160mm SDS Plus masonry drill bits. The MultiPlugs are used to secure the membrane to suitable masonry walls, while their soft rubber grommets seal the fixing penetrations. The OverTape seals the close butt joints between adjoining non-flanged sheets. These are fixed kit quantities, so additional plugs, tape, detailing products, drainage components or drill bits may be needed according to the measured installation and specified fixing arrangement.

Q) How does the Newton CDM 503 Waterproof Membrane Kit work?

A) Newton CDM 503 uses 3mm square studs to hold the membrane away from the wall, floor or suitable soffit, creating a shallow cavity that accepts moisture passing through the structure. Instead of relying on the membrane to resist hydrostatic pressure as a standalone barrier, the system controls incoming water and directs it towards an appropriate drainage route. This may include Newton CDM BaseDrain, Newton CDM FloorDrain, a dependable gravity outlet or a correctly sized sump-and-pump system. The membrane also isolates internal finishes from damp and salt-affected backgrounds. Reliable performance depends on continuous drainage, carefully sealed joints and fixings, compatible protected finishes, adequate discharge capacity, accessible inspection points and planned maintenance.

Q) Is this kit a complete basement waterproofing system?

A) The Newton CDM 503 Waterproof Membrane Kit provides the membrane and principal products used to drill, fix and seal it, but it is not a complete Type C waterproofing system for every project. Drainage channels, outlets, sump chambers, pumps, alarms, battery back-up, inspection points, preparation treatments, repair materials, insulation and internal finishes are not included. Additional Newton CDM Rope, Joint Tape, OverTape, plugs or specialist penetration products may also be required for corners, transitions, services, repairs and overhead work. A complete specification must consider the structure, expected water ingress, drainage capacity, discharge route, room use, floor build-up and consequences of failure. These elements should be determined before installation rather than added after the membrane has been fitted.

Q) How much area does the Newton CDM 503 kit cover?

A) The supplied Newton CDM 503 roll measures 2m x 20m and has a nominal gross area of 40m². This does not mean it will provide exactly 40m² of finished installed coverage. Measure every wall, floor, return, reveal, column, threshold and vaulted section, then allow for trimming, complex shapes, penetrations, junctions, repairs and reasonable cutting waste. CDM 503 sheets form close butt joints rather than broad overlaps, but accurate planning is still essential. The included 100 MultiPlugs and 20m of OverTape are fixed quantities rather than a calculated allowance for every 40m² layout. Prepare a full take-off for membrane, joint lengths, fixing centres and accessories before ordering.

Q) Why does Newton CDM 503 use a 3mm studded profile?

A) The shallow 3mm square-stud profile creates a controlled drainage cavity while keeping the overall waterproofing build-up compact. This can preserve valuable headroom, floor depth and internal room space around low ceilings, staircases, thresholds, doorways, reveals and narrow routes. The membrane is therefore useful where a deeper studded sheet could complicate levels or noticeably reduce usable dimensions. Its low profile does require especially careful preparation and drainage design. Drilling dust, mortar, free-lime deposits, silt, crushed studs or persistent standing water can restrict a 3mm cavity more quickly than a deeper route. The substrate must be suitably prepared, the drainage path tested and the membrane protected from obstruction or damage throughout subsequent work.

Q) What are the main advantages of buying CDM 503 as a kit?

A) Buying Newton CDM 503 as a kit places the principal membrane-installation products in one coordinated package. The membrane, 100 sealed MultiPlugs, 150mm OverTape and two correctly sized SDS Plus drill bits are selected for the standard wall-fixing and butt-jointing method, reducing uncertainty when ordering the basic components. The lightweight HDPE membrane can be cut and positioned efficiently, and it requires no curing period of its own. Its 3mm profile also limits the space lost to the waterproofing layer. The kit does not remove the need for a measured specification, however. Fixing density, total joint length, substrate hardness, drainage design, complex details and the chosen internal finish may all require additional products.

Q) Where can the Newton CDM 503 Waterproof Membrane Kit be used?

A) The kit can be used within correctly designed waterproofing systems for suitable domestic and commercial basements, cellars, tunnels, underground rooms, earth-retained walls, concrete floors and vaulted soffits. It is particularly useful in refurbishments where internal space, headroom or floor depth must be preserved. CDM 503 can isolate protected finishes from damp, water-affected and salt-bearing substrates while directing ingress towards controlled drainage. It may be installed on appropriate concrete, brick and blockwork backgrounds, subject to proper preparation and fixing. Suitability must be assessed for the specific structure, water conditions and intended room use. Active structural movement, unstable masonry, hazardous contamination and unresolved defects require specialist assessment and remedial work before the membrane is concealed.

Q) Is the Newton CDM 503 kit suitable for a habitable or Grade 3 basement?

A) Newton CDM 503 can contribute to a coordinated Type C system designed to achieve Grade 3 internal conditions, where no water penetration is acceptable and ventilation or environmental control is required. The membrane cannot deliver that standard by itself. The retaining structure, drainage channels, outlets, sump-and-pump equipment, alarms, power resilience, protected finishes, ventilation and maintenance arrangements must work together under a project-specific design. Where Grade 3 protection is required and retained ground exceeds 600mm, relevant NHBC work requires CDM 503 to be combined with Type A or Type B waterproofing. Habitable basements also need suitable insulation, heating, fire safety, electrical provision and Building Regulations compliance in addition to structural waterproofing.

Q) Can this membrane kit be used on both walls and floors?

A) Newton CDM 503 is suitable for correctly designed wall and floor applications, but the installation method differs between them. On walls, the studs face the substrate and the membrane is mechanically secured using sealed MultiPlugs installed through stud centres into sound material. On floors, the membrane is loose-laid with the studs facing down and must not be punctured by ordinary fixings. Adjoining sheets form close butt joints sealed centrally with 150mm Newton CDM OverTape in both applications. Wall membrane normally drains into BaseDrain at the perimeter, while floor areas may also need FloorDrain or another designed collection route. Each surface requires compatible protection, loading assessment, junction detailing and continuous drainage towards a dependable outlet or sump.

Q) Which substrates are suitable for Newton CDM 503?

A) Suitable wall backgrounds include sound concrete, brick masonry, concrete blockwork and correctly detailed insulated concrete formwork using appropriate specialist fixings. Floor applications may be formed over stable concrete rafts or slabs, while suitable vaulted work can include arched masonry or concrete shaped to a dependable drainage fall. Every background must be structurally stable, capable of supporting the selected fixings and free from conditions that could puncture the membrane or obstruct its shallow cavity. Unsound plaster, render or screed should be removed, and severe depressions, open joints or unstable areas must be repaired. Active movement, collapsing masonry, hazardous contamination, running leaks and serious structural defects must be investigated and corrected rather than hidden behind CDM 503.

Q) How should the area be prepared before installing the kit?

A) Begin with a full assessment of the structure, water risk, drainage route, final finishes and any defects requiring repair. Remove unsound plaster, render and screed, together with timber, wallpaper and other organic material that could decay behind the membrane. Brush or vacuum away dust, laitance, salts, mould, loose particles and adhesive residues. Make good deep depressions, unstable joints and sharp projections using compatible repair materials. Correct leaking services, external drainage faults and structural problems where practicable. Suitable concrete should receive an appropriate anti-lime treatment where free-lime migration could obstruct CDM 503, channels or the sump. Surfaces receiving butyl tape or rope must be clean, dry and free from grease, debris and condensation.

Q) How level must a floor be before CDM 503 is laid?

A) Floor levels are critical because water must move freely through the shallow 3mm cavity towards the designed drainage point. Establish the datum at slab level beside the channel where it connects to the sump. Deviation from this datum must not exceed -5mm between that point and the furthest extent of the waterproofing system. A positive deviation of up to +15mm is acceptable only at the furthest point and must not create an intermediate high or low area that traps water. Where board flooring will lie directly over CDM 503, the concrete base must not deviate by more than 5mm beneath a 2m straightedge. Check levels and drainage by laser survey and controlled flood testing before covering the floor.

Q) How is Newton CDM 503 installed on a wall?

A) CDM 503 may be fitted vertically or horizontally, depending on the wall dimensions, sheet layout and required jointing. Cut the membrane on a clean, protected surface, then position it with the studs towards the wall and its flat face towards the room. Keep it level and tight into corners without stretching or crushing the stud profile. Using one of the supplied 10mm x 160mm SDS Plus bits, drill through the centre of a stud into sound masonry to the required depth. Insert a sealed MultiPlug and drive it fully home so the rubber grommet compresses evenly. Complete the specified fixing pattern, align adjoining sheet edges as close butt joints and seal them centrally with 150mm OverTape.

Q) How far apart should the Newton CDM MultiPlugs be fitted?

A) Fixing centres depend on the substrate and the internal lining rather than one universal spacing. For preservative-treated timber battens, Newton guidance gives centres of 600mm vertically and 400mm horizontally. For a fixed metal-track lining, the stated centres are 800mm vertically and 600mm horizontally. Barrel-vault work requires closer spacing of approximately 300mm around the curve and 600mm along the vault. Independent frames need enough fixings to hold CDM 503 reasonably tight, particularly at corners, openings and junctions. Every MultiPlug should pass centrally through a membrane stud into sound material and seat securely. Calculate the total fixing requirement from the chosen arrangement, as the 100 plugs supplied may not be sufficient for every installation.

Q) How are joints sealed in Newton CDM 503 membrane?

A) Newton CDM 503 has no flange, so adjoining sheets must meet edge to edge as a close, accurately aligned butt joint rather than an overlap. Cut the edges straight, remove dust and moisture, and ensure the flat membrane faces are clean and dry. Centre the supplied 150mm Newton CDM OverTape across the joint so a similar width adheres to each sheet. Apply it progressively, using firm palm or roller pressure to eliminate wrinkles, trapped air and areas of poor contact. Controlled warm air may assist drying and butyl tack in cold or damp conditions, but the membrane and tape must never be overheated. Inspect every joint before it is hidden by dry lining or flooring.

Q) Does the Newton CDM 503 kit require drainage and a sump pump?

A) Every below-ground CDM 503 system requires a dependable method of collecting and disposing of water from behind or beneath the membrane. Newton CDM BaseDrain is commonly positioned at the wall-to-floor junction, while Newton CDM FloorDrain can provide cross-floor routes, threshold drainage or connections to a central sump. If suitable levels exist, the drainage may discharge through a dependable gravity outlet. Otherwise, a correctly sized sump-and-pump system will normally be required. Pump duty, head, chamber volume, pipe resistance and discharge capacity must suit the anticipated inflow. Standby pumps, high-water alarms, battery back-up and telemetry may be necessary where failure could cause flooding. None of these drainage or pumping components is included in the kit.

Q) How is Newton CDM 503 installed across a floor?

A) Install the designed drainage route and correct unsuitable slab levels before laying the membrane. Clean the concrete base thoroughly and remove sharp projections, rubble, oil and loose material. Unroll CDM 503 with the studs facing down, cutting neatly around perimeters, columns, drainage components and unavoidable services without stretching or crushing it. Bring adjoining sheets together edge to edge and seal every close butt joint centrally with 150mm Newton CDM OverTape. Connect the floor membrane continuously to the wall, BaseDrain and other junction details specified for the system. Never drive ordinary fixings through floor CDM 503. Protect completed areas promptly with the approved load-spreading floor build-up while keeping inspection points and sump access reachable.

Q) What floor finishes can be installed above CDM 503?

A) Suitable protected constructions may include a project-specified screed, loose-laid tongue-and-groove chipboard, a supported timber floor, insulation with screed or chipboard above, or an underfloor-heating tray beneath screed. Newton Fibran XPS 500-C may also be incorporated within an approved and load-checked insulated drainage build-up. The final arrangement must distribute point and imposed loads without crushing the 3mm studs or obstructing water flow. It must also accommodate partitions, thresholds, insulation, heating components and the required perimeter expansion gap. Ordinary fixings must not penetrate the floor membrane. Screeds, boards, adhesives and decorative finishes remain subject to their own curing, moisture and installation requirements, and access to channels, jetting points and sump covers must be preserved.

Q) Can the Newton CDM 503 kit be used on vaults or flat soffits?

A) CDM 503 may be installed on suitable arched or vaulted soffits where the structure provides a dependable continuous fall to drainage. The membrane must follow the background closely, use sufficient sealed overhead fixings and remain free from sagging pockets that could retain water or debris. Vault membranes should turn down the end walls by at least 200mm and be integrated with the wall system. Overhead work requires additional NuSeal Plugs with CDM Rope, or another approved separately sealed fixing detail; the supplied grommet-sealed wall plugs must not simply be used unchanged. Flat soffits are specialist applications and must be at least 400mm narrower than the 2m sheet, with dependable drainage and installation by very experienced contractors.

Q) How should corners, doors and window reveals be detailed?

A) Plan corners and openings before fixing the main sheets so waterproofing continuity is maintained with as few joints as practical. CDM 503 may be folded around a corner where it can form a neat square crease without stretching, bridging or crushing the studs. If the sheet becomes distorted, stop at the corner, begin a new section and seal the close butt joint with 150mm OverTape. Where possible, carry the membrane across window openings before trimming the aperture. Door frames, reveals and thresholds must connect to the wall, floor and drainage details without leaving isolated cavities or bypass routes. Three-dimensional shapes may require Newton CDM Rope, Joint Tape, patches or another compatible project-specific detail specified by the waterproofing designer.

Q) How should pipes and cables passing through CDM 503 be sealed?

A) Keep pipes, cables, conduits, sockets and controls on the dry side of CDM 503 wherever possible, because every penetration creates a potential route for water to bypass the membrane. Where a service must pass through, establish its position before cutting and make the smallest neat opening suitable for the approved sealing detail. Floor services may be trimmed closely and sealed with Newton CDM Rope, with a compatible patch and Newton CDM Joint Tape or OverTape added where required. Larger, grouped, moving, hot or irregular services may need proprietary collars or sleeves. The completed seal must accommodate the service material, movement, operating temperature and future maintenance while preserving drainage and waterproof continuity around the entire penetration.

Q) What tools and additional products may be required for installation?

A) The kit includes two 10mm x 160mm SDS Plus masonry drill bits, but installers will normally also need a suitable SDS hammer drill, tape measure, 2m straightedge, spirit or rotating laser level, marker, sharp utility knife, scissors or shears, mallet, hand roller, clean cloths, stiff brush, vacuum and dust extraction. Controlled hot-air equipment may assist surface drying or tape tack when used carefully. Additional system products can include BaseDrain, FloorDrain, connectors, jetting eyes, sumps, pumps, alarms, CDM Rope, Joint Tape, extra OverTape, specialist plugs and repair materials. Safe access equipment is necessary for high walls or vaults. Assemble and check every specified component before installation begins.

Q) Does Newton CDM 503 require curing or drying time?

A) Newton CDM 503 itself does not require curing because it is a prefabricated HDPE sheet that is mechanically fixed on walls or loose-laid on floors. Once the membrane, joints, fixings, penetrations and drainage connections have been inspected and the system has passed its required tests, the specified protected finish can normally proceed. CDM 503 may also be laid over suitable new concrete once it is safely walkable, allowing the floor construction to advance without waiting for decorative-floor moisture limits. This does not remove the drying or curing requirements of repair mortars, levelling compounds, screeds, adhesives, plasters or final floor finishes. Butyl tapes and rope must always be applied to suitably clean, dry surfaces.

Q) Can plaster or render be applied directly to Newton CDM 503?

A) Direct plaster or render must not be applied to standard Newton CDM 503 because it is a non-meshed membrane and does not provide the required key for a wet finish. Suitable protection may instead include a floor-supported independent dry-lining frame, a compatible proprietary metal lining, preservative-treated timber battens with plasterboard or suitable sheeting, or a properly restrained internal brick or block wall. Where battens are used, compatible 5mm (No. 10) self-tapping screws may be driven into the central cores of correctly installed MultiPlugs without making another membrane penetration. Screw length and tightening must be controlled carefully. If a directly plastered finish is required, a purpose-designed meshed membrane system should be specified instead.

Q) Does the Newton CDM 503 kit prevent condensation and mould?

A) Newton CDM 503 manages moisture and water entering through the structure, but it does not remove water vapour produced within the completed room. Cooking, washing, clothes drying, occupation, wet building materials and insufficient ventilation can still cause condensation or mould on cold internal surfaces. Habitable basements and Grade 3 spaces therefore need an appropriate ventilation, heating, insulation and humidity-control strategy. Because CDM 503 has high resistance to vapour diffusion, the complete wall or floor construction should be assessed in accordance with BS 5250:2021, with a warm-side vapour-control layer included where required. Persistent dampness after completion should be properly investigated rather than automatically attributed to either condensation or failure of the waterproofing membrane.

Q) What are the main technical specifications of Newton CDM 503?

A) Newton CDM 503 is a non-meshed HDPE membrane with a unit weight of 0.5kg/m², a 0.6mm sheet thickness and a 3mm square-stud profile. The kit contains one 2m x 20m roll, providing 40m² nominal gross coverage. Published membrane performance includes watertightness at 60kPa for 24 hours to EN 1928, tensile strength of 416N in the machine direction and 488N in the cross direction, static-loading resistance above 20kg and compressive strength of 250kN. Its working temperature range is -50°C to +80°C and its softening temperature is 126°C. The membrane has Class E reaction to fire and must remain protected within a suitable construction.

Q) Which certification, service life and warranty apply to CDM 503?

A) Newton CDM 503 is covered by BBA Agrément Certificate 22/6357 and is declared as a Type V sheet to BS EN 13967:2012+A1:2017. It can form part of a maintainable Type C drained protection system designed in accordance with BS 8102:2022. When correctly specified, installed and protected, the membrane can provide an effective barrier to salts, liquid water and water vapour for the life of the structure in which it is incorporated. Newton also provides a 30-year product warranty for the membrane. These provisions apply to CDM 503 itself and do not automatically extend to every kit component, drainage product, pump, finish or complete installation. Contractor guarantees and insurance-backed cover are separate arrangements.

Q) What maintenance and repair work does a CDM 503 system require?

A) The protected CDM 503 sheet normally needs little direct surface maintenance, but the drainage and pumping arrangement requires planned attention. BaseDrain, FloorDrain, jetting eyes, outlets, sump chambers, pumps, alarms, back-up power and discharge pipework must remain accessible. Newton requires competent pump and drainage checks at least annually, alongside any additional intervals specified by the equipment manufacturers. Channels should be flushed and sumps cleaned before lime, silt or debris restricts flow. Pumps, floats, non-return valves, electrical connections, alarms and back-up systems should be tested. Any membrane damage must be cleaned, dried and repaired before concealment using compatible tape, rope or a generously sized patch, followed by inspection, water testing and photographic recording.

Q) What are the main limitations and practical tips for using this kit?

A) The kit is not a standalone barrier against hydrostatic pressure and requires continuous, maintainable drainage to a dependable outlet or sump. Its 40m² membrane area, 100 plugs and 20m tape roll are fixed quantities that may not cover every finished installation. CDM 503 is non-meshed, cannot receive direct plaster and must not be punctured by ordinary floor fixings. Keep the shallow 3mm cavity free from dust, mortar, lime and crushed studs, and apply every butyl seal to clean, dry surfaces. Plan joints, drainage, plug rows, services and finishes before cutting; test channels, pumps and alarms before concealment; photograph hidden details; mark no-fix zones; and retain clear maintenance access for the completed system.

Technical Data Sheet

Newton CDM Installation Manual

Declaration of Performance (DoP)

BBA Certificate
