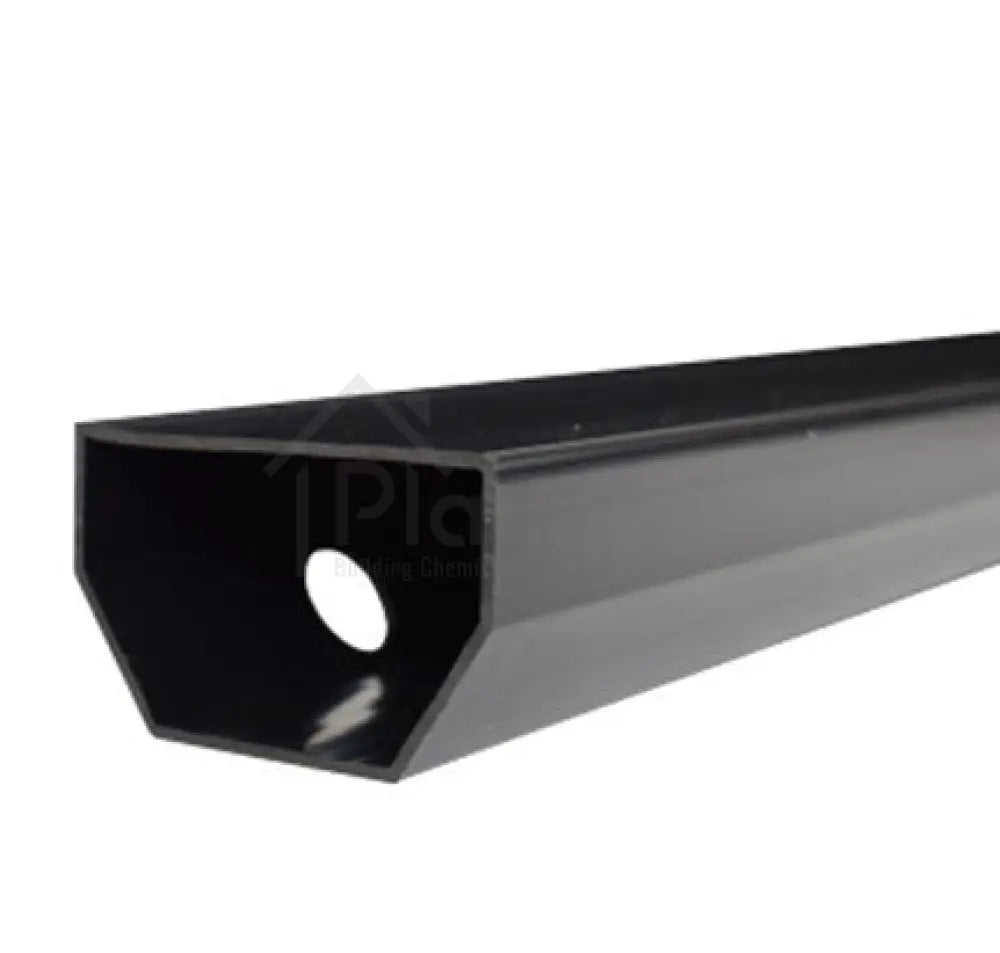

The Platinum AquaTrack Floor Drain Channel is a pivotal component of the Platinum AquaTrack Drainage Channel System, tailored for effective water management in subterranean environments.
This PVC drainage conduit seamlessly connects the perimeter drainage channels to a sump chamber via the AquaTrack T-Piece, facilitating the efficient redirection of water away from critical areas. Its design, without the upstand, makes it ideal for installations at door thresholds where standard upstands might be obstructive.
Each 2 metre length is equipped with pre-drilled drainage holes for optimal functionality, and is built to be tough and durable, conforming to the BS8102:2009 standards for Type C cavity drain membrane systems.
Size
Free Delivery
on orders over £100(ex. VAT, mainland UK only)
Free Help & Advice
Call 01355 222 777Mon.-Fri 8:30am - 4:15pm, or email us
Next Day Delivery
Order before 14:00 Mon - Fri for same day despatch
Great Service
A proudly independent family business with 40 years experience
The Platinum AquaTrack Floor Drain Channel enhances the functionality of the broader AquaTrack Drainage Channel System by providing a specialised conduit option that complements the perimeter channels. Manufactured from high-grade PVC, this floor drain channel is specifically designed for use in challenging below-ground conditions, offering a robust solution to water management issues commonly encountered in such environments.

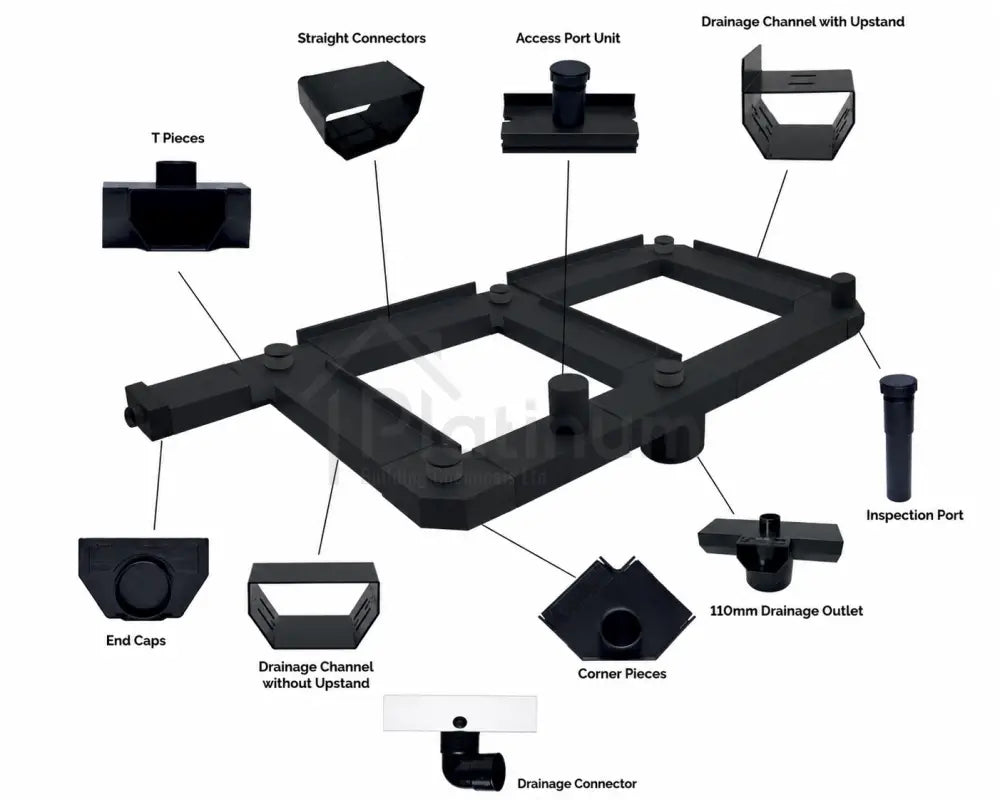

This drain channel is engineered without an upstand, allowing for flush installation across flat surfaces, particularly at entry points and door thresholds where a protruding upstand would be impractical. It is designed to integrate seamlessly with the Platinum AquaTrack Drainage Channel via the AquaTrack T-Piece, which enables effective diversion of water to central sump units. The pre-drilled holes ensure that water is efficiently captured and conveyed away from the building structure, preventing water logging and associated damage.
The installation process for the Platinum AquaTrack Floor Drain Channel is straightforward and user-friendly. Its compatibility with the comprehensive AquaTrack system means it can be quickly interconnected with other system components, reducing installation times and complexity. The channel's design facilitates easy alignment and jointing with both the perimeter channels and the T-Piece, ensuring a watertight fit and continuous water management efficacy.
Constructed from durable PVC, the channel is designed to withstand the rigours of subterranean environments, resisting wear and degradation over time. This material choice not only ensures longevity but also maintains the integrity of the drainage system under various environmental stresses, including moisture and soil pressure.
Streamlined Water Management: Provides an essential link between perimeter channels and the central sump system, enhancing the overall efficiency of subterranean drainage systems.
Versatile Installation Options: The absence of an upstand allows for installation in areas where a standard channel would be obstructive, such as door thresholds, ensuring continuous drainage capability across various architectural designs.
Quick and Simple Installation: The pre-fabricated design, complete with pre-drilled drainage holes, allows for rapid and easy installation, significantly reducing labour costs and time on site.
Long-lasting Durability: Made from high-quality PVC, the channel is robust and built to last, offering reliable performance that complies with the stringent requirements of BS8102:2009 for below-ground waterproofing.
Residential Basements: Ensures effective drainage in residential properties, protecting basements from water ingress and the potential damages of moisture build-up.
Commercial Building Foundations: Ideal for use in commercial constructions, such as office buildings and retail spaces, where effective water management is crucial to maintaining structural integrity.
Underground Parking and Service Areas: Provides reliable drainage solutions for underground utilities areas and parking structures, preventing water accumulation and facilitating safer, drier conditions.
Heritage Building Renovations: Suitable for application in renovation projects of historical buildings, offering a non-intrusive, effective moisture management solution that does not compromise the structure's integrity or aesthetic.
Begin by preparing the installation site to ensure optimal functionality of the Platinum AquaTrack Floor Drain Channel. This includes forming a suitable trough where the channel will be laid.
With the site prepared, proceed to install the Platinum AquaTrack Floor Drain Channel, ensuring proper connection to perimeter systems and the sump pump.
Laying the Stone Base: Fill the trough with a 20mm graded stone base to provide stability and level footing for the channel.
Placing the Channel: Set the Platinum AquaTrack Floor Drain Channel onto the stone base. Ensure it is positioned flat and without any upstand to maintain a flush surface across the floor, particularly crucial in areas like door thresholds.
Integrating with Perimeter Channels: Connect the end of the floor drain channel to the perimeter channel using the AquaTrack T-Piece. This piece is essential for diverting water from the perimeter to the floor channel effectively.
Extending the Channel: If the distance from the perimeter channel to the sump chamber exceeds 2 metres, additional lengths of the Floor Drain Channel may be required. Use AquaTrack Connector Pieces to join these lengths securely.
Securing and Aligning the Channel: After placement, fill the remaining space around the channel within the trough with 20mm stone, ensuring the channel is well-supported and level with the floor surface.
To ensure that the installation is robust and will function effectively, some final steps are required:
Ensure Proper Slope and Alignment: Check that the channel is correctly aligned towards the sump chamber, facilitating efficient water flow. The channel should be laid dead level unless specific gradient adjustments are needed for effective water flow to the sump.
Inspect and Test Connections: Make sure all connections, especially at the T-Pieces and any joints with Connector Pieces, are secure and leak-proof. Testing the system by running water through it can help identify any issues with flow or leaks that need addressing before completing the installation.
Final Inspection: Conduct a thorough final inspection to ensure all parts are correctly installed and functioning as expected. This should include checking for any potential obstructions or misalignments.
Regular maintenance is crucial for the long-term performance of the Platinum AquaTrack Floor Drain Channel. This includes periodic checks for blockages and ensuring that all components remain securely connected.
Routine cleaning to remove debris and sediment will help maintain optimal drainage efficiency.
