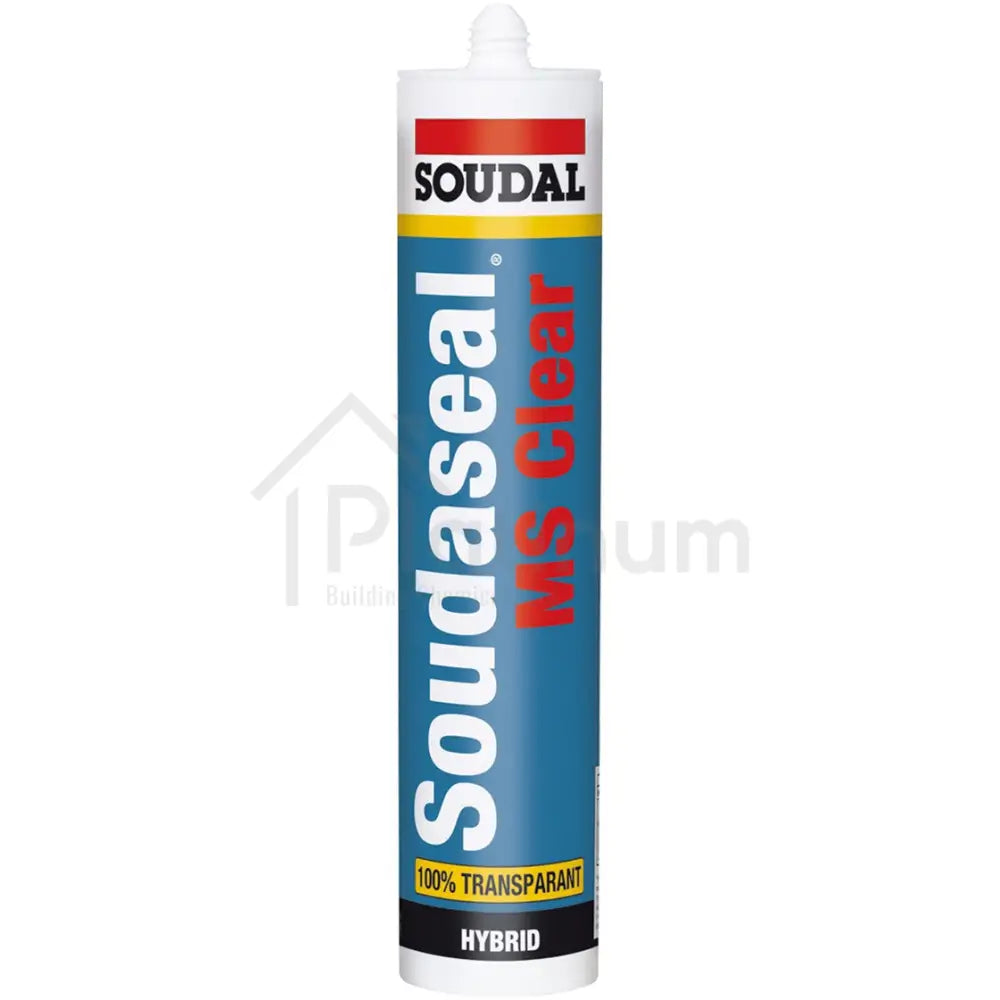

Soudal Soudaseal MS Clear - Hybrid Sealant & Adhesive

Substrate Suitability:

Soudal Soudaseal MS Clear is suitable for use on all common building substrates, including glass, treated wood, PVC, plastics, metals, stone, and concrete.

The substrates must be rigid, clean, and either dry or slightly moist. It is essential that the surfaces are free of dust and grease to ensure optimal adhesion.

For porous surfaces, it is recommended to use Soudal Primer 150 to enhance adhesion. Non-porous surfaces should be prepared with a Soudal Surface Activator or Soudal Cleaner & Degreaser.

Special attention should be given to plastic surfaces as they often have releasing agents, processing aids, or protective agents like protection foils that must be removed prior to bonding or sealing.

Note that bonding plastics such as PMMA (e.g., Plexi® glass) and polycarbonate (e.g., Makrolon® or Lexan®) in stress-loaded applications can lead to stress cracking and crazing; hence, the use of Soudaseal MS Clear is not recommended in these scenarios.

It is also unsuitable for PE, PP, PTFE (e.g., Teflon®), bituminous substrates, and copper or copper-containing materials such as bronze and brass. A preliminary adhesion and compatibility test on every surface is strongly recommended.

Surface Preparation:

Proper surface preparation is crucial for achieving a strong and durable bond. Begin by ensuring that all surfaces are clean, dry (or slightly moist), and free from dust and grease. For porous surfaces, apply Soudal Primer 150 to enhance adhesion.

Non-porous surfaces should be cleaned and prepared using Soudal Surface Activator or Soudal Cleaner & Degreaser to remove any contaminants that could affect the bond.

For plastic surfaces, it is important to remove any releasing agents, processing aids, or protective foils that may hinder adhesion. Conducting a preliminary adhesion and compatibility test on each surface will help ensure that the product performs as expected.

Application Method as a Bonding Adhesive:

To apply Soudaseal MS Clear as a bonding adhesive, follow these steps for optimal results:

1. Cut the nozzle of the cartridge at a 45-degree angle to the desired bead size and insert the cartridge into the applicator gun.



2. Apply the adhesive in continuous beads or dabs spaced approximately every 15 cm. Ensure that adhesive is applied to the edges and corners of panels to secure a strong bond.



3. Press the surfaces together firmly and batten down with a rubber hammer to ensure proper contact and adhesion.



4. If necessary, support the bonded materials until the adhesive cures. The bond can be fully loaded after 24 to 48 hours, depending on environmental conditions and the substrates involved.

Application Method as a Sealant:

When using Soudaseal MS Clear as a sealant, follow these detailed steps:

1. Joint Preparation: Ensure that the joints are properly designed and sized according to the expected movements and thermal expansions. Joints should be clean, dry, and free from any contaminants such as dust, grease, or old sealant residues.



2. Masking: Apply masking tape along the edges of the joints to ensure a clean and neat finish. This also helps to prevent the sealant from spreading onto adjacent surfaces.



3. Cutting the Nozzle: Cut the nozzle of the cartridge at a 45-degree angle to match the width of the joint. Insert the cartridge into a sealant applicator gun.



4. Application: Apply the sealant into the joint using steady pressure on the applicator gun. Ensure the sealant fills the joint completely, avoiding any gaps or air pockets. Move the applicator gun smoothly along the length of the joint for a consistent bead of sealant.



5. Tooling: Immediately after application, tool the sealant with a suitable tool or a wet finger to ensure it adheres well to the sides of the joint and creates a smooth, professional finish. This step should be done before the sealant begins to skin over.



6. Removing Masking Tape: Carefully remove the masking tape before the sealant skins over to ensure clean edges and avoid pulling the sealant out of the joint.

Finishing:

Once the sealant has been applied and tooled, ensure the installation looks neat and any excess sealant is smoothed out. Soudaseal MS Clear can be overpainted with most water-based paints.

Due to the wide variety of paints and varnishes available, it is advisable to perform a compatibility test before application.

Note that alkyd resin-based paints may have an increased drying time when applied over the sealant.

Cleaning:

For easy cleanup after application, use Soudal Swipex Cleaning Wipes to remove any uncured sealant residue.

If the sealant has already cured, mechanical removal with the assistance of Soudal Sealant Remover Spray is necessary.

Other Information:

Soudaseal MS Clear is not suitable for use as a glazing sealant, for bonding aquariums, or for expansion joints. It should not be used in applications where continuous water immersion is possible. The product can discolour under extreme conditions or after prolonged UV exposure, but this does not affect its technical properties.

When using different reactive joint sealants, ensure that the first joint sealant has completely hardened before applying the next one. Avoid contact with bitumen, tar, or other plasticiser-releasing materials such as EPDM, neoprene, and butyl, as this can cause discolouration and loss of adhesion.

Soudaseal MS Clear conforms to the requirements of LEED for low-emitting materials, including adhesives and sealants. It complies with SCAQMD rule 1168 and USGBC LEED 2009 Credit 4.1 regarding VOC content.

Q) What is Soudal Soudaseal MS Clear?

A) Soudal Soudaseal MS Clear is a high-performance, crystal-clear hybrid polymer sealant and adhesive. It offers exceptional bond strength on nearly all surfaces, even when damp, and remains flexible after curing. It is free from isocyanates, solvents, halogens, and acids, making it safe for various applications.

Q) What surfaces can Soudaseal MS Clear bond to?

A) Soudaseal MS Clear bonds to a wide range of surfaces, including glass, treated wood, PVC, plastics, metals, stone, and concrete. It provides excellent adhesion on both porous and non-porous surfaces, ensuring a reliable bond even under challenging conditions.

Q) Is Soudaseal MS Clear suitable for outdoor use?

A) Yes, Soudaseal MS Clear is suitable for both indoor and outdoor applications. It is resistant to weather and UV exposure, making it ideal for sealing and bonding tasks in various environments.

Q) Can Soudaseal MS Clear be used in sanitary applications?

A) Yes, Soudaseal MS Clear contains XS1 fungicide, which makes it impervious to mould and suitable for use in sanitary applications such as bathrooms and kitchens. It helps maintain hygiene by preventing the growth of fungi.

Q) Is Soudaseal MS Clear paintable?

A) Yes, Soudaseal MS Clear can be painted with all water-based paints. However, due to the large number of paints and varnishes available, a compatibility test is strongly recommended before application to ensure optimal results.

Q) How long does it take for Soudaseal MS Clear to cure?

A) Soudaseal MS Clear forms a skin in approximately 4 minutes at 23°C and 50% relative humidity. It cures at a rate of 2 mm to 3 mm per 24 hours under the same conditions. Full curing time depends on the thickness of the application and environmental factors.

Q) What are the temperature limits for Soudaseal MS Clear?

A) Soudaseal MS Clear can withstand temperatures ranging from -40°C to 90°C, making it suitable for use in environments with extreme temperature variations.

Q) Can Soudaseal MS Clear be used on damp surfaces?

A) Yes, Soudaseal MS Clear exhibits excellent adhesion on damp surfaces. This makes it versatile and reliable for various bonding and sealing applications where surface moisture might be a concern.

Q) Is Soudaseal MS Clear environmentally friendly?

A) Yes, Soudaseal MS Clear is free from isocyanates, solvents, halogens, and acids. It conforms to LEED requirements for low-emitting materials and complies with SCAQMD rule 1168 and USGBC LEED 2009 Credit 4.1 regarding VOC content, ensuring minimal impact on air quality.

Q) Can Soudaseal MS Clear be used for glazing applications?

A) No, Soudaseal MS Clear is not suitable for use as a glazing sealant. It is designed for bonding and sealing applications but should not be used for glazing or bonding aquariums.

Q) What is the maximum allowed distortion for Soudaseal MS Clear?

A) Soudaseal MS Clear can accommodate movements up to ± 20%. This flexibility ensures that the sealant can handle thermal expansions and structural movements without losing adhesion or integrity.

Q) What is the hardness of Soudaseal MS Clear?

A) Soudaseal MS Clear has a hardness of 38 ± 5 Shore A, which provides a balance between flexibility and durability, making it suitable for a wide range of bonding and sealing applications.

Q) How should surfaces be prepared before applying Soudaseal MS Clear?

A) Surfaces should be clean, dry or slightly moist, and free from dust and grease. For porous surfaces, use Soudal Primer 150. Non-porous surfaces should be prepared with Soudal Surface Activator or Soudal Cleaner & Degreaser. Remove any releasing agents or protective foils from plastic surfaces.

Q) Can Soudaseal MS Clear be used on natural stone?

A) Soudaseal MS Clear can be used for bonding natural stone tiles but is not suitable for use as a joint sealant on natural stone surfaces. It cannot be used for bonding aquariums or in continuous water immersion applications.

Q) What should I do if Soudaseal MS Clear discolours over time?

A) Discolouration due to chemicals, high temperatures, or UV radiation may occur, but this does not affect the technical properties of the product. To avoid discolouration, prevent contact with bitumen, tar, or other plasticiser-releasing materials such as EPDM, neoprene, and butyl.

Q) How do I clean up uncured Soudaseal MS Clear?

A) Use Soudal Swipex Cleaning Wipes to remove any uncured sealant residue immediately after application. If the sealant has already cured, mechanical removal with Soudal Sealant Remover Spray is necessary.

Q) Can Soudaseal MS Clear be used in applications with continuous water immersion?

A) No, Soudaseal MS Clear is not suitable for applications where continuous water immersion is possible. It is designed for bonding and sealing tasks but should not be used in submerged conditions.

Q) How should Soudaseal MS Clear be applied as a bonding adhesive?

A) Cut the nozzle at a 45-degree angle and apply the adhesive in beads or dabs spaced approximately every 15 cm. Press the surfaces together firmly and batten down with a rubber hammer. Support the bonded materials until the adhesive cures, which can be fully loaded after 24 to 48 hours.

Q) How should Soudaseal MS Clear be applied as a sealant?

A) Ensure joints are clean and dry, apply masking tape for clean edges, cut the nozzle to match the joint width, and apply the sealant with steady pressure. Tool the sealant immediately for a smooth finish, then remove the masking tape before the sealant skins over.

Q) Can Soudaseal MS Clear be used on copper or copper-containing materials?

A) No, Soudaseal MS Clear is not suitable for use on copper or copper-containing materials such as bronze and brass. It is also unsuitable for PE, PP, PTFE (e.g., Teflon®), and bituminous substrates.

Q) Is Soudaseal MS Clear safe for indoor use?

A) Yes, Soudaseal MS Clear is free from isocyanates, solvents, halogens, and acids, making it safe for indoor use. Its low emission certification (EC1 PLUS R) ensures minimal impact on indoor air quality.

Q) Can I use Soudaseal MS Clear for expansion joints?

A) No, Soudaseal MS Clear is not suitable for expansion joints. It is designed for bonding and sealing applications but should not be used where significant joint movement is expected.

Q) What are the technical specifications of Soudaseal MS Clear?

A) Soudaseal MS Clear has a skin formation time of approximately 4 minutes, a curing speed of 2 mm to 3 mm per 24 hours, a hardness of 38 ± 5 Shore A, a density of approximately 1.05 g/ml, and an elongation at break of approximately 350%.

Q) Can Soudaseal MS Clear be used in high-humidity areas?

A) Yes, Soudaseal MS Clear is suitable for high-humidity areas such as bathrooms and kitchens. Its fungicidal properties help prevent mould growth, maintaining hygiene in these environments.

Q) Does Soudaseal MS Clear have any odour?

A) Soudaseal MS Clear is odourless, contributing to a more pleasant working environment during application.

Q) How do I ensure a strong bond with Soudaseal MS Clear?

A) Ensure surfaces are clean, dry (or slightly moist), and free from contaminants. Use Soudal Primer 150 for porous surfaces and Soudal Surface Activator or Cleaner & Degreaser for non-porous surfaces. Apply the adhesive or sealant as directed and ensure proper contact and support during curing.

Q) Can Soudaseal MS Clear be used for automotive applications?

A) Yes, Soudaseal MS Clear can be used for bonding and sealing tasks in automotive applications. Its flexibility and durability make it suitable for dynamic environments where thermal expansion and vibrations are common.

Q) What precautions should I take when using Soudaseal MS Clear?

A) Avoid contact with bitumen, tar, or other plasticiser-releasing materials. Do not use it in continuous water immersion applications or on natural stone, copper, PE, PP, PTFE, and bituminous substrates. Conduct preliminary adhesion and compatibility tests on all surfaces.

Q) How does Soudaseal MS Clear perform in extreme temperatures?

A) Soudaseal MS Clear maintains its performance across a wide temperature range from -40°C to 90°C, making it suitable for use in environments with extreme temperature variations.

Q) What is the recommended method for removing cured Soudaseal MS Clear?

A) Cured Soudaseal MS Clear should be removed mechanically with the assistance of Soudal Sealant Remover Spray. Follow the instructions provided with the spray for effective removal.
